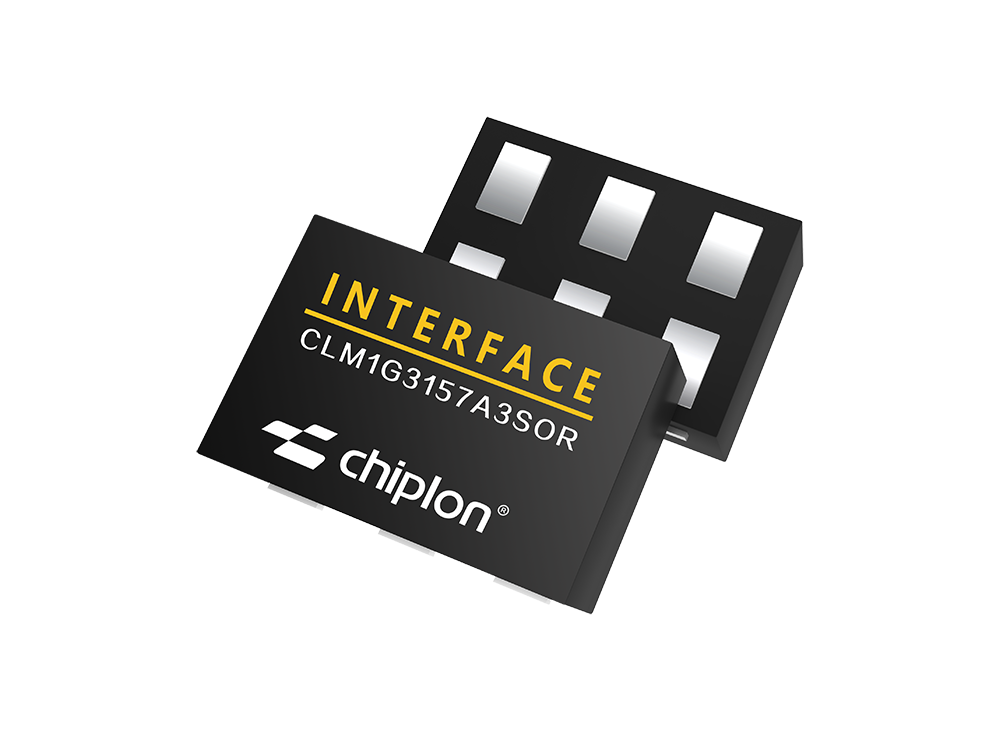

CLM1G3157 is an advanced CMOS analog circuit switch manufactured by Chiplon using silicon gate CMOS technology. It achieves extremely low propagation delay while maintaining low power consumption of CMOS. The analog voltage and the digital voltage power supply range that may vary throughout the process (from VCC to GND) are also covered.The Select pin has overvoltage protection function, allowing the voltage to be higher than VCC, up to 7.0 V, without causing damage or interrupting operation regardless of the operating voltage. The product directly pin-to-pin replaces international equivalents, enabling full compatibility without requiring changes to PCB or system software. Chiplon Microelectronics employs its proprietary testing solution to ensure factory products meet or exceed original datasheet specifications, supporting industrial-grade (-40°C to 125°C) operating temperatures. Competing product: SN74LVC1G3157DRYR

Low power consumption: 1uA

High bandwidth: 350MHz

Standard CMOS logic levels

High-speed, improved linearity

Switch between standard NTSC/PAL video, audio, SPDIF and HDTV

Suitable for clock switching, data multiplexing, etc.

Low RDS (On)

Disconnect before connecting the circuit to prevent accidental interruption of video

Operating temperature: -40°C to +125°C

Package: SC70-6, SON-6

Wearable and mobile devices

Portable computing

Internet of Things (IoT)

Audio signal routing

Remote radio unit

Portable medical equipment

monitor

Home automation

I2C/SPI/UART bus multiplexing

wireless charging
