Phase Locked Loop

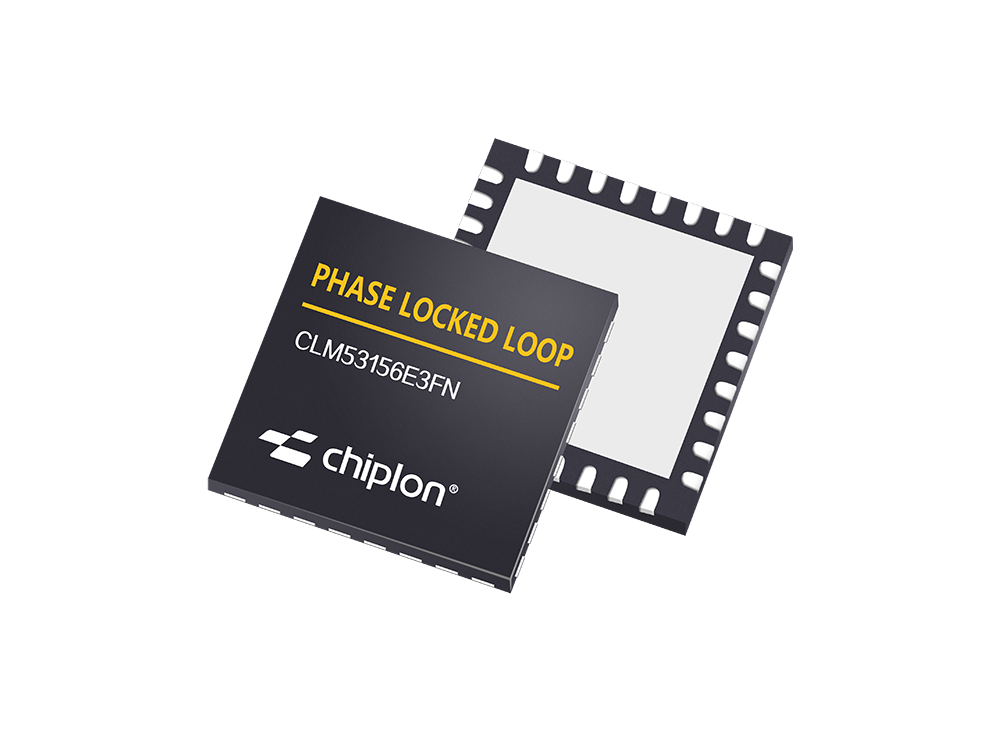

CLM53156E3FNR
CLM53156E3FNR  CLM53156E3FNRNormal Supply
Main Parameter

Input/output ratio: 1:6

Maximum frequency: 100 MHz

Compatibility: PCIe Gen1, 2, 3, 4 and SATA

Support finer programming control through I2C bus

Can adjust output skew, edge rate and amplitude through I2C

Integrated terminal resistors

Each output channel has an independent enable control pin

Supports spread-spectrum clock fault tolerance

Through internal terminals and programmable output characteristics, effectively optimizes signals and reduces electromagnetic interference (EMI)

Package: QFN-32 (5x5)

Product Introduction

CLM53156 is a PCIe clock buffer/fanout buffer developed with great dedication by Chiplon Microelectronics. It can precisely distribute a single clock source to up to 6 PCIe devices, making it highly suitable for devices that require multiple PCIe slots or interfaces. Additionally, it can output through I2C communication for control; the I2C programmability can also be used to dynamically control the skew, edge rate, and amplitude of the real signal, as well as complementary signals or differential signals on the clock output. This control function ensures the best signal integrity and optimal electromagnetic interference characteristics at the clock output end. It can be measured using the PCIe clock jitter tool, which is fast and simple. The product can directly pin to pin replace similar international products without the need to change the circuit board or system software, achieving complete compatibility and replacement. Chiplon Microelectronics has developed its own testing plan to ensure that the factory products meet or even exceed the original specifications, supporting industrial grade working temperatures (-40 ℃~85 ℃).Competing product: SI53156-A01AGM

Chip Features

Input/output ratio: 1:6

Maximum frequency: 100 MHz

Compatibility: PCIe Gen1, 2, 3, 4 and SATA

Support finer programming control through I2C bus

Can adjust output skew, edge rate and amplitude through I2C

Integrated terminal resistors

Each output channel has an independent enable control pin

Supports spread-spectrum clock fault tolerance

Through internal terminals and programmable output characteristics, effectively optimizes signals and reduces electromagnetic interference (EMI)

Package: QFN-32 (5x5)

Application Domain

Network attached storage

Multi functional printer

Wireless Access Point

Router

Framework Picture
Doc Download
  • *
  • *
  • *
  • *
  • *
  • *
  • *
  • *
  • *
  • *
  • *
  • *
Complete and detailed applications can be approved faster; we will reply within 2 working days; the samples sent out are self-paid.
