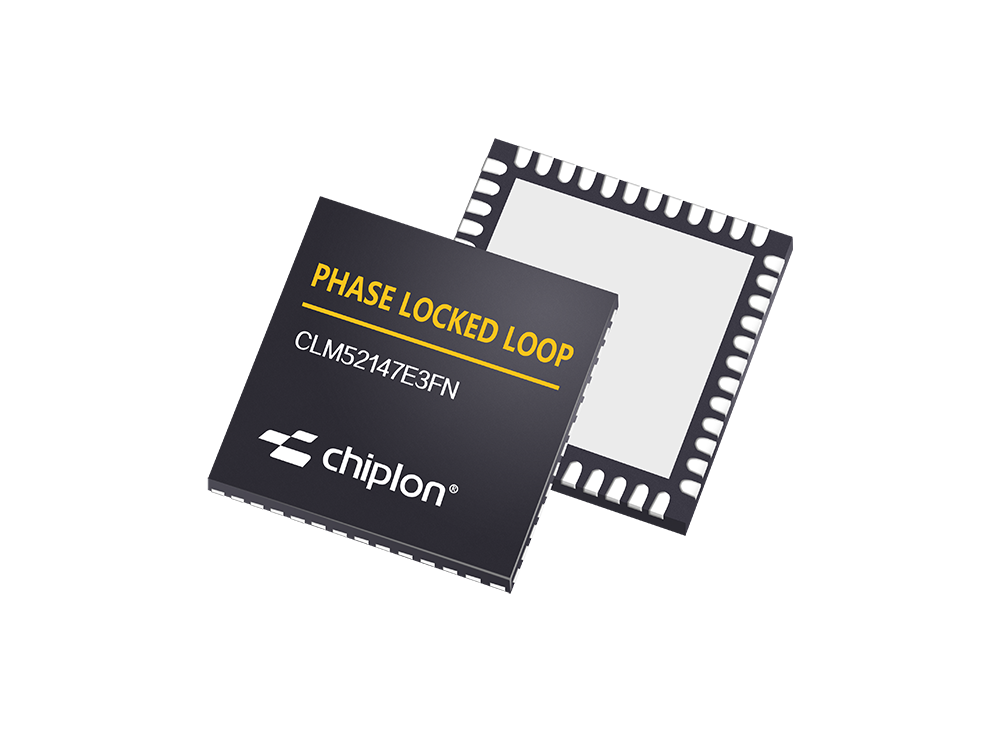

CLM52147 is a high-performance PCIe device generated synchronous clock generator launched by Chiplon, which can provide nine output PCIe clocks sourced from 25 MHz crystals or clock inputs. The clock output complies with the PCIe Gen 1, Gen 2, Gen 3, Gen 3 SRNS, and Gen 4 universal clock specifications. The device has six hardware output enable control pins for enabling and disabling differential outputs. In addition, it supports programming and configuring output parameters through the I ² C/SMBus interface, and frequency hopping control pins for reducing electromagnetic interference are also available. Adopting push-pull HCSL output buffer technology and fully integrating terminal resistors, miniaturization, and low power consumption characteristics, it becomes an ideal clock solution for embedded applications. The product can directly pin to pin replace similar international products without the need to change the circuit board or system software, achieving complete compatibility and replacement. Chiplon Microelectronics has developed its own testing plan to ensure that the factory products meet or even exceed the original specifications, supporting industrial grade working temperatures (-40 ℃~85 ℃). Competing product: SI52147-A01AGMR

PCIe clock output, supporting Gen1/2/3

1 input, generating 9 HCSL differential outputs

Maximum output frequency 100MHz, operating voltage 3.3V

Support spread spectrum, I ² C programming, and integrated terminal resistors

Supports Serial ATA (SATA)

Compatible with differential output

No terminal resistor required

All clock output enable pins

Expand enable pins

25 MHz crystal input or clock input

Enable through pins or I ² C interface

Can effectively reduce electromagnetic interference (EMI) in the system

Package: QFN-48 (6x6)

Network Attached Storage

Multifunction Printer

Wireless Access Point

Server
