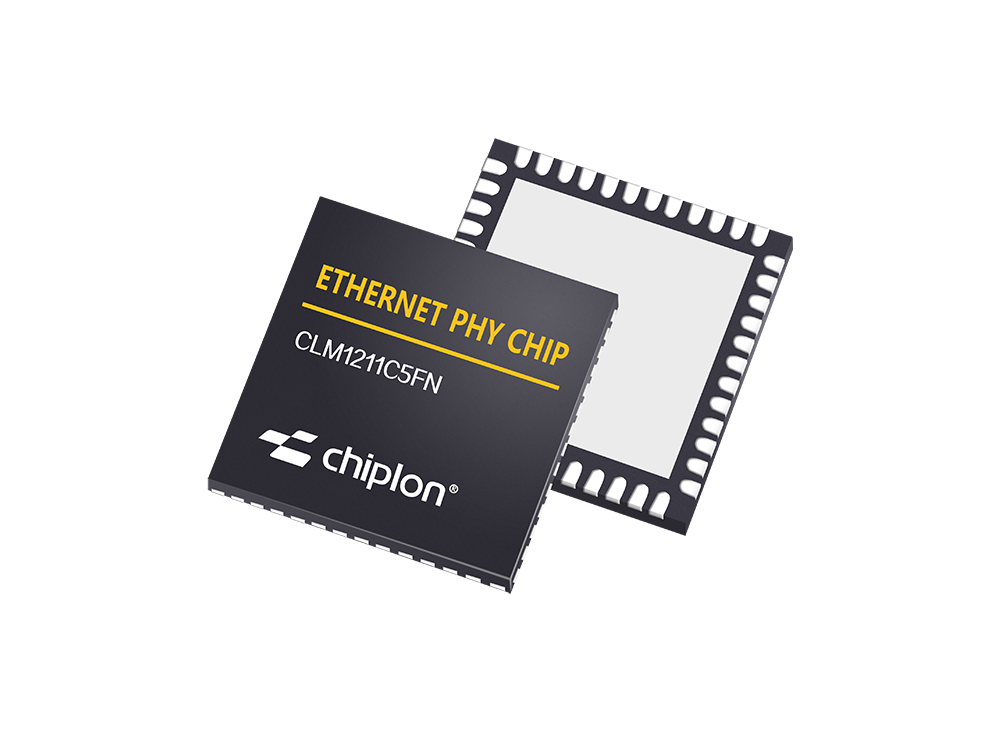

CLM1211 is a highly integrated Ethernet transceiver developed with great dedication by Chiplon Microelectronics.It complies with the IEEE 802.3 standards of 10Base-T, 100Base-TX and 1000Base-T. It provides all the physical layer functions required for transmitting and receiving Ethernet data packets via CAT.5 UTP cables. Utilizing advanced digital signal processing technology and analog front-end (AFE), it enables high-speed data transmission and reception on UTP cables.Functions such as cross-line detection and automatic correction, polarity correction, adaptive equalization, crosstalk elimination, echo elimination, timing recovery and error correction can all be realized, thereby providing reliable transmission and reception capabilities at rates of 10 Mbps, 100 Mbps or 1000 Mbps. Data transmission between the MAC and the PHY is carried out through the simplified Gigabit Media Independent Interface (RGMII) for 1000Base-T, 10Base-T and 100Base-TX.Supports multiple RGMII signal voltages, including 1.5V and 1.8V, 2.5V, and 3.3V. The product can directly pin to pin replace similar international products without the need to change the circuit board or system software, achieving complete compatibility and replacement. Chiplon Microelectronics has developed its own testing plan to ensure that the factory products meet or even exceed the original specifications, supporting industrial grade (0 ℃~70 ℃) working temperatures. Competing product: RTL8211FS-CG

Compliant with 1000Base-T IEEE 802.3ab standard

Compliant with 100Base-TX IEEE 802.3u standard

Compliant with 10Base-T IEEE 802.3 standard

Supports RGMII

Supports IEEE 802.3az-2010 (Energy-Efficient Ethernet)

Built-in network wake-up function (WOL)

Supports interrupt function

Supports parallel detection

Supports cross-line detection and automatic correction

Supports automatic polarity correction

Supports PHYRSTB core power-off

Supports baseline drift correction

Supports 120 meter CAT. 5 cable in 1000Base-T mode

RGMII signal supports 3.3/2.5/1.8/1.5V options

Supports 25MHz external crystal or oscillator

Provides 125MHz clock source for MAC

Provides 3 network status indicator lights

Supports energy-saving mode when link is disconnected

Supports green Ethernet (only 1000/100Mbps mode)

Built-in switch regulator and low dropout regulator

Package: QFN-48

Digital Television (DTV)

Media Access Unit (MAU)

Communication and Network Junction Box (CNR)

Ethernet Hub

Ethernet Switch
